The Parametric Bootstrap

Lecture 13

March 10, 2024

Last Class

The Bootstrap

Efron (1979) suggested combining estimation with simulation: the bootstrap.

Key idea: use the data to simulate a data-generating mechanism.

Baron von Munchhausen Pulling Himself By His Hair

Source: Wikipedia

Why Does The Bootstrap Work?

Let \(t_0\) the “true” value of a statistic, \(\hat{t}\) the estimate of the statistic from the sample, and \((\tilde{t}_i)\) the bootstrap estimates.

  • Variance: \(\text{Var}[\hat{t}] \approx \text{Var}[\tilde{t}]\)
  • Then the bootstrap error distribution approximates the sampling distribution \[(\tilde{t}_i - \hat{t}) \overset{\mathcal{D}}{\sim} \hat{t} - t_0\]

The Non-Parametric Bootstrap

The non-parametric bootstrap is the most “naive” approach to the bootstrap: resample-then-estimate.

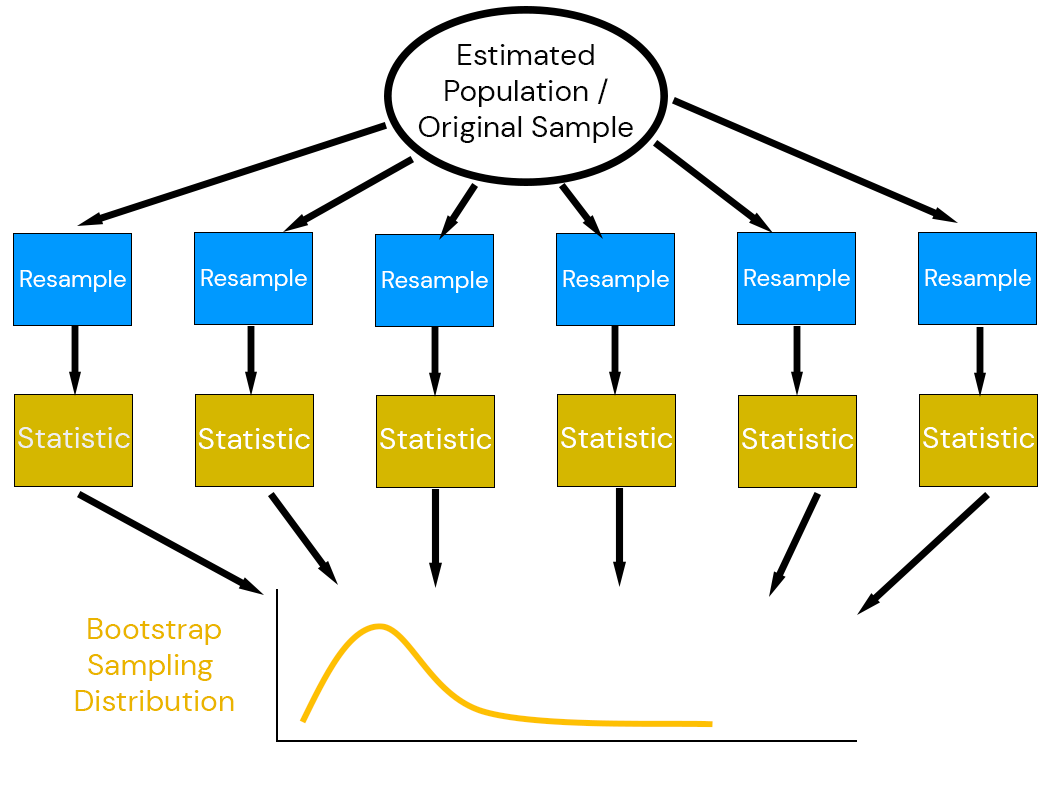

Non-Parametric Bootstrap

Approaches to Bootstrapping Structured Data

  • Correlations: Transform to uncorrelated data (principal components, etc.), sample, transform back.
  • Time Series: Block bootstrap

Sources of Non-Parametric Bootstrap Error

  1. Sampling error: error from using finitely many replications
  2. Statistical error: error in the bootstrap sampling distribution approximation

The Parametric Bootstrap

The Parametric Bootstrap

  • Non-Parametric Bootstrap: Resample directly from the data.
  • Parametric Bootstrap: Fit a model to the original data and simulate new samples, then calculate bootstrap estimates.

This lets us use additional information, such as a simulation or statistical model, instead of relying only on the empirical CDF.

Parametric Bootstrap Scheme

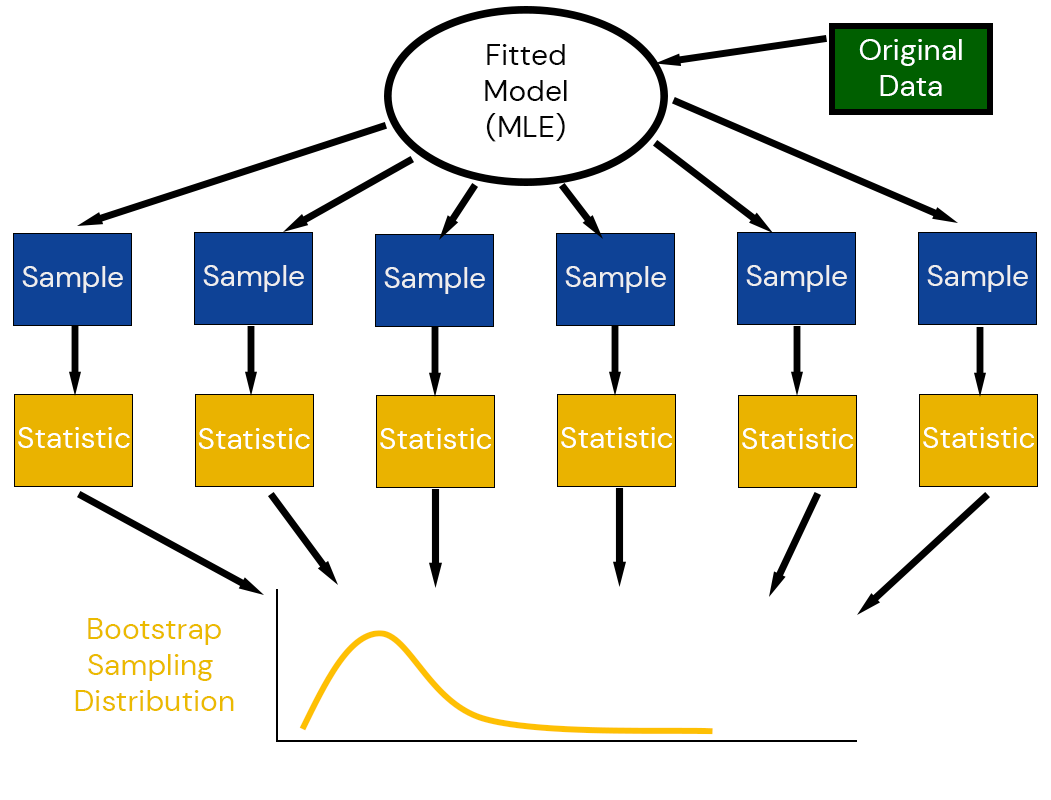

The parametric bootstrap generates pseudodata using simulations from a fitted model.

Parametric Bootstrap

Benefits of the Parametric Bootstrap

  • Can quantify uncertainties in parameter values
  • Deals better with structured data (model accounts for structure)
  • Can look at statistics which are limited by resimulating from empirical CDF.

Potential Drawbacks

  • New source of error: model specification
  • Misspecified models can completely distort estimates.

Example: 100-Year Return Periods

Tide Gauge Data

Detrended San Francisco Tide Gauge Data:

Code
# read in data and get annual maxima
function load_data(fname)
    date_format = DateFormat("yyyy-mm-dd HH:MM:SS")
    # This uses the DataFramesMeta.jl package, which makes it easy to string together commands to load and process data
    df = @chain fname begin
        CSV.read(DataFrame; header=false)
        rename("Column1" => "year", "Column2" => "month", "Column3" => "day", "Column4" => "hour", "Column5" => "gauge")
        # need to reformat the decimal date in the data file
        @transform :datetime = DateTime.(:year, :month, :day, :hour)
        # replace -99999 with missing
        @transform :gauge = ifelse.(abs.(:gauge) .>= 9999, missing, :gauge)
        select(:datetime, :gauge)
    end
    return df
end

dat = load_data("data/surge/h551.csv")

# detrend the data to remove the effects of sea-level rise and seasonal dynamics
ma_length = 366
ma_offset = Int(floor(ma_length/2))
moving_average(series,n) = [mean(@view series[i-n:i+n]) for i in n+1:length(series)-n]
dat_ma = DataFrame(datetime=dat.datetime[ma_offset+1:end-ma_offset], residual=dat.gauge[ma_offset+1:end-ma_offset] .- moving_average(dat.gauge, ma_offset))

# group data by year and compute the annual maxima
dat_ma = dropmissing(dat_ma) # drop missing data
dat_annmax = combine(dat_ma -> dat_ma[argmax(dat_ma.residual), :], groupby(transform(dat_ma, :datetime => x->year.(x)), :datetime_function))
delete!(dat_annmax, nrow(dat_annmax)) # delete 2023; haven't seen much of that year yet
rename!(dat_annmax, :datetime_function => :Year)
select!(dat_annmax, [:Year, :residual])
dat_annmax.residual = dat_annmax.residual / 1000 # convert to m

# make plots
p1 = plot(
    dat_annmax.Year,
    dat_annmax.residual;
    xlabel="Year",
    ylabel="Annual Max Tide (m)",
    label=false,
    marker=:circle,
    markersize=5
)
p2 = histogram(
    dat_annmax.residual,
    normalize=:pdf,
    orientation=:horizontal,
    label=:false,
    xlabel="PDF",
    ylabel="",
    yticks=[]
)

l = @layout [a{0.7w} b{0.3w}]
plot(p1, p2; layout=l, link=:y, ylims=(1, 1.7), bottom_margin=10mm, left_margin=5mm)
plot!(size=(1000, 400))
Figure 1: Annual maxima surge data from the San Francisco, CA tide gauge.

Parametric Bootstrap Strategy

  1. Fit/calibrate model
  2. Compute statistic of interest
  3. Repeat \(N\) times:
    1. Resample values from fitted model
    2. Calculate statistic.
  4. Compute mean/confidence intervals from distribution of bootstrapped statistics.

Parametric Bootstrap Results

Code
# function to fit GEV model for each data set
init_θ = [1.0, 1.0, 0.0]
lb = [0.0, 0.0, -2.0]
ub = [5.0, 10.0, 2.0]
loglik_gev(θ) = -sum(logpdf(GeneralizedExtremeValue(θ[1], θ[2], θ[3]), dat_annmax.residual))

# get estimates from observations
rp_emp = quantile(dat_annmax.residual, 0.99)
θ_gev = Optim.optimize(loglik_gev, lb, ub, init_θ).minimizer

p = histogram(dat_annmax.residual,  normalize=:pdf, xlabel="Annual Maximum Storm Tide (m)", ylabel="Probability Density", label=false, right_margin=5mm)
plot!(p, GeneralizedExtremeValue(θ_gev[1], θ_gev[2], θ_gev[3]), linewidth=3, label="Parametric Model", color=:orange)
vline!(p, [rp_emp], color=:red, linewidth=3, linestyle=:dash, label="Empirical Return Level")
vline!(p, [quantile(GeneralizedExtremeValue(θ_gev[1], θ_gev[2], θ_gev[3]), 0.99)], color=:blue, linewidth=3, linestyle=:dash, label="Model Return Level")
xlims!(p, 1, 2)
Figure 2: Fitted GEV Distribution

Adding Bootstrap Samples

Code
n_boot = 1000
boot_samp = rand(GeneralizedExtremeValue(θ_gev[1], θ_gev[2], θ_gev[3]), (nrow(dat_annmax), n_boot))
rp_boot = mapslices(col -> quantile(col, 0.99), boot_samp, dims=1)'

pfit = plot(GeneralizedExtremeValue(θ_gev[1], θ_gev[2], θ_gev[3]), color=:darkorange, linewidth=3, label="GEV Model", xlabel="Annual Maximum Storm Tide (m)", ylabel="Probability Density", right_margin=5mm)
vline!(pfit, [rp_emp], color=:black, linewidth=3, linestyle=:dash, label="Empirical Return Level")
xlims!(pfit, 1, 1.75)
scatter!(pfit, rp_boot[:, 1], zeros(nrow(dat_annmax)), color=:orange, label="GEV Bootstrap Replicates", markersize=3, alpha=0.3)
vline!(pfit, [mean(rp_boot)], color=:orange, linewidth=3, label="GEV Bootstrap Estimate")
vline!(pfit, [2 * rp_emp - mean(rp_boot)], color=:orange, linewidth=3, linestyle=:dot, label="Bias-Corrected Estimate (GEV)")
Figure 3: Initial bootstrap sample

Bootstrap Confidence Interval

Code
phist = histogram(rp_boot, xlabel="100-Year Return Period Estimate (m)", ylabel="Count", right_margin=5mm, label="GEV Bootstrap Samples", color=:darkorange, alpha=0.4)
vline!(phist, [rp_emp], color=:black, linewidth=3, linestyle=:dash, label="Empirical Estimate")
q_boot = 2 * rp_emp .- quantile(rp_boot, [0.975, 0.025])
vline!(phist, [mean(rp_boot)], color=:red, linestyle=:dash, linewidth=3, label="GEV Bootstrap Estimate")
vline!(phist, [2 * rp_emp - mean(rp_boot)], color=:red, linestyle=:dot, linewidth=3, label="Bias-Corrected GEV Estimate")
vspan!(phist, q_boot, linecolor=:orange, fillcolor=:orange, lw=3, alpha=0.3, fillalpha=0.3, label="95% GEV Bootstrap CI")
Figure 4: Bootstrap histogram

When To Use The Parametric Bootstrap?

  • Reasonable to specify model (but uncertain about parameters/statistics);
  • Interested in statistics where model provides needed structure (e.g. extremes, dependent data);

Impact of Model Choice

Code
## re-do bootstrap with lognormal distribution
# function to fit GEV model for each data set
init_θ = [1.0, 1.0]
lb = [0.0, 0.0]
ub = [5.0, 10.0]
loglik_ln(θ) = -sum(logpdf(LogNormal(θ[1], θ[2]), dat_annmax.residual))
θ_ln = Optim.optimize(loglik_ln, lb, ub, init_θ).minimizer

boot_samp_ln = rand(LogNormal(θ_ln[1], θ_ln[2]), (nrow(dat_annmax), n_boot))
rp_boot_ln = mapslices(col -> quantile(col, 0.99), boot_samp_ln, dims=1)'
q_boot_ln = 2 * rp_emp .- quantile(rp_boot_ln, [0.975, 0.025])

## plot confidence intervals and estimates
## GEV fit
pfit = plot(GeneralizedExtremeValue(θ_gev[1], θ_gev[2], θ_gev[3]), color=:darkorange, linewidth=3, label="GEV Model", xlabel="Annual Maximum Storm Tide (m)", ylabel="Probability Density", right_margin=5mm)
vline!(pfit, [rp_emp], color=:black, linewidth=3, linestyle=:dash, label="Empirical Return Level")
xlims!(pfit, 1, 1.75)
vline!(pfit, [mean(rp_boot)], color=:orange, linewidth=3, label=false)
vline!(pfit, [2 * rp_emp - mean(rp_boot)], color=:orange, linewidth=3, linestyle=:dot, label=false)
## lognormal fit
plot!(pfit, LogNormal(θ_ln[1], θ_ln[2]), color=:darkgreen, lw=3, label="LogNormal Model")
vline!(pfit, [mean(rp_boot_ln)], color=:green, linewidth=3, label=false)
vline!(pfit, [2 * rp_emp - mean(rp_boot_ln)], color=:green, linewidth=3, linestyle=:dot, label=false)
plot!(pfit, size=(550, 550))

## GEV histogram
phist = histogram(rp_boot, xlabel="100-Year Return Period Estimate (m)", ylabel="Count", right_margin=5mm, legend=false, color=:darkorange, alpha=0.4)
vline!(phist, [2 * rp_emp - mean(rp_boot)], color=:red, linestyle=:dot, linewidth=3)
vspan!(phist, q_boot, linecolor=:orange, fillcolor=:orange, lw=3, alpha=0.3, fillalpha=0.3)
histogram!(phist, rp_boot_ln, fillcolor=:green, alpha=0.3, label="LN Bootstrap Samples")
vline!(phist, [2 * rp_emp - mean(rp_boot_ln)], color=:purple, linestyle=:dot, linewidth=3)
vspan!(phist, q_boot_ln, linecolor=:darkgreen, fillcolor=:darkgreen, lw=3, alpha=0.3, fillalpha=0.3)
plot!(phist, size=(550, 550))

display(pfit)
display(phist)
(a) Bootstrap histogram with model mis-specification
(b)
Figure 5

Comparison of Parametric and Non-Parametric Bootstrap

Streamflow-TDS Regression Example

\[S \sim \mathcal{N}(\beta_0 + \beta_1 \log(D), \sigma^2)\]

Parametric Bootstrapping

Code
# tds_riverflow_loglik: function to compute the log-likelihood for the tds model
# θ: vector of model parameters (coefficients β₀ and β₁ and stdev σ)
# tds, flow: vectors of data
function tds_riverflow_loglik(θ, tds, flow)
    β₀, β₁, σ = θ # unpack parameter vector
    μ = β₀ .+ β₁ * log.(flow) # find mean
    ll = sum(logpdf.(Normal.(μ, σ), tds)) # compute log-likelihood
    return ll
end

lb = [0.0, -1000.0, 1.0]
ub = [1000.0, 1000.0, 100.0]
θ₀ = [500.0, 0.0, 50.0]
optim_out = Optim.optimize(θ -> -tds_riverflow_loglik(θ, tds.tds_mgL, tds.discharge_cms), lb, ub, θ₀)
θ_mle = round.(optim_out.minimizer; digits=0)

xspan = 0.1:0.1:52
model_fit(x, θ) = θ[1] .+ θ[2] * log.(x)
plot!(p, xspan, model_fit(xspan, θ_mle), label="Fitted Regression")
xlims!(p, 3, 55)
plot!(p, size=(550, 500))
display(p)

## get bootstrap replicates
nboot = 1_000
boot_samples = zeros(nrow(tds), nboot)
boot_θ = zeros(3, nboot)
for i = 1:nboot
    # resample from model
    boot_samples[:, i] = model_fit(tds.discharge_cms, θ_mle) + rand(Normal(0, θ_mle[3]), nrow(tds))
    # refit model
    optim_out = Optim.optimize(θ -> -tds_riverflow_loglik(θ, boot_samples[:, i], tds.discharge_cms), lb, ub, θ₀)
    boot_θ[:, i] = optim_out.minimizer
end


pboot = scatter(
    tds.discharge_cms,
    tds.tds_mgL,
    xlabel=L"Discharge (m$^3$/s)",
    ylabel="Total dissolved solids (mg/L)",
    markersize=5,
    label="Observations",
    color=:blue,
    xaxis=:log,
    alpha=0.4
)
scatter!(pboot,
    tds.discharge_cms,
    boot_samples[:, 1],
    markersize=5,
    color=:grey,
    label="Bootstrap Replicate",
    alpha=0.4
)
plot!(pboot, xspan, model_fit(xspan, θ_mle), label="Original Model Fit", color=:blue, lw=3)
plot!(pboot, xspan, model_fit(xspan, boot_θ[:, 1]), label="Bootstrap Model Fit", color=:grey, lw=3)
xlims!(pboot, 3, 55)
plot!(pboot, size=(550, 500))
display(pboot)
(a) Fitted regression model for the parametric model.
(b)
Figure 6

Parametric Bootstrap Samples

(a) Confidence Intervals for the TDS problem from the parametric bootstrap
(b)
(c)
Figure 7

Parametric vs. Non-Parametric Bootstrap CIs

Code
# need to get non-parametric bootstrap estimates
np_boot_θ = zeros(3, nboot)
for i = 1:nboot
    # resample from model
    idx = sample(1:nrow(tds), nrow(tds); replace=true)
    # refit model
    optim_out = Optim.optimize(θ -> -tds_riverflow_loglik(θ, tds.tds_mgL[idx], tds.discharge_cms[idx]), lb, ub, θ₀)
    np_boot_θ[:, i] = optim_out.minimizer
end

## find bias-corrected estimates and confidence intervals
np_boot_est = 2 * θ_mle - mean(np_boot_θ; dims=2)
np_boot_q = mapslices(v -> quantile(v, [0.95, 0.05]), np_boot_θ; dims=2)
np_boot_ci = zeros(3, 2)
for i in eachindex(θ_mle)
    np_boot_ci[i, :] = 2 * θ_mle[i] .- np_boot_q[i, :]
end

parnames = ["β₀", "β₁", "σ"]
boot_ci_str =  string.(Int64.(round.(boot_est; digits=0)), " (", Int64.(round.(boot_ci[:, 1]; digits=0)), ",", Int64.(round.(boot_ci[:, 2]; digits=0)), ")")
np_boot_ci_str =  string.(Int64.(round.(np_boot_est; digits=0)), " (", Int64.(round.(np_boot_ci[:, 1]; digits=0)), ",", Int64.(round.(np_boot_ci[:, 2]; digits=0)), ")")
pretty_table(DataFrame(Parameters=parnames, NP=vec(np_boot_ci_str), Par=vec(boot_ci_str)); backend=Val(:markdown), show_subheader=false, show_row_number=false)
Table 1
Parameters NP Par
β₀ 611 (576,643) 610 (574,646)
β₁ -112 (-123,-101) -112 (-128,-97)
σ 75 (52,97) 74 (63,83)

Which Bootstrap To Use?

Parametric bootstrap estimates converge faster than non-parametric estimates.

  • If your parametric model is “properly” specified, parametric bootstrap gives more accurate results with the same \(n\).
  • If the parametric model is mis-specified, you’re rapidly converging to the wrong distribution.

Bootstrapping Residuals

Can bootrap residuals from a model versus “full” parametric bootstrap:

  1. Fit model (statistically or numerical).
  2. Calculate residuals from deterministic/expected values.
  3. Resample residuals.
  4. Add bootstrapped residuals back to model trend to create new replicates.
  5. Refit model to replicates.

Last Thoughts on the Bootstrap

Bootstrap vs. Monte Carlo

Bootstrap “if I had a different sample (conditional on the bootstrap principle), what could I have inferred”?

Monte Carlo: Given specification of input uncertainty, what data could we generate?

Bootstrap Distribution and Monte Carlo

Could we use a bootstrap distribution for MC?

  • Sure, that’s just one specification of the data-generating process.
  • Nothing unique or particularly rigorous in using the bootstrap for this; substituting the bootstrap principle for other assumptions.

Bootstrap vs. Bayes

Bootstrap: “if I had a different sample (conditional on the bootstrap principle), what could I have inferred”?

Bayesian Inference: “what different parameters could have produced the observed data”?

Key Points

Key Points

  • Bootstrap: Use the characteristics of the data to simulate new samples.
  • Bootstrap gives idea of sampling error in statistics (including model parameters)
  • Distribution of \(\tilde{t} - \hat{t}\) approximates distribution around estimate \(\hat{t} - t_0\).
  • Allows us to estimate uncertainty of estimates (confidence intervals, bias, etc).
  • Parametric bootstrap introduces model specification error

Bootstrap Variants

  • Resample Cases (Non-Parametric)
  • Resample Residuals (from fitted model trend)
  • Simulate from Fitted Model (Parametric)

Which Bootstrap To Use?

Depends on trust in model “correctness”: - Do we trust the model specification to be reasonably correct? - Do we trust that we have enough samples to recover the empirical CDF? - Do we trust the data-generating process?

Discussion of Bankes et al (1993)

Questions to Seed Discussion

  • What are the practical differences between exploratory and consolidative modeling?
  • When do you think each approach is more or less appropriate?
  • How do these approaches impact the choice of your methods?

Upcoming Schedule

Next Classes

Wednesday: Markov Chains and Bayesian Computation

Next Week (plan): Model Evaluation

Assessments

  • Homework 3: Due Friday (3/14)
  • Project Proposal: Due 3/21

References

References (Scroll for Full List)

Efron, B. (1979). Bootstrap methods: Another look at the jackknife. Ann. Stat., 7, 1–26. https://doi.org/10.1214/aos/1176344552
